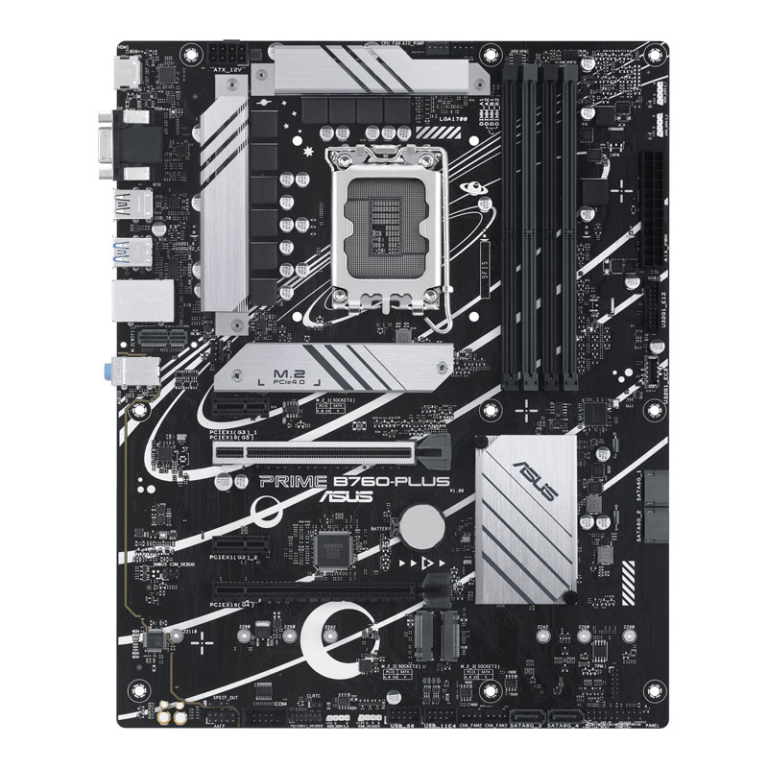

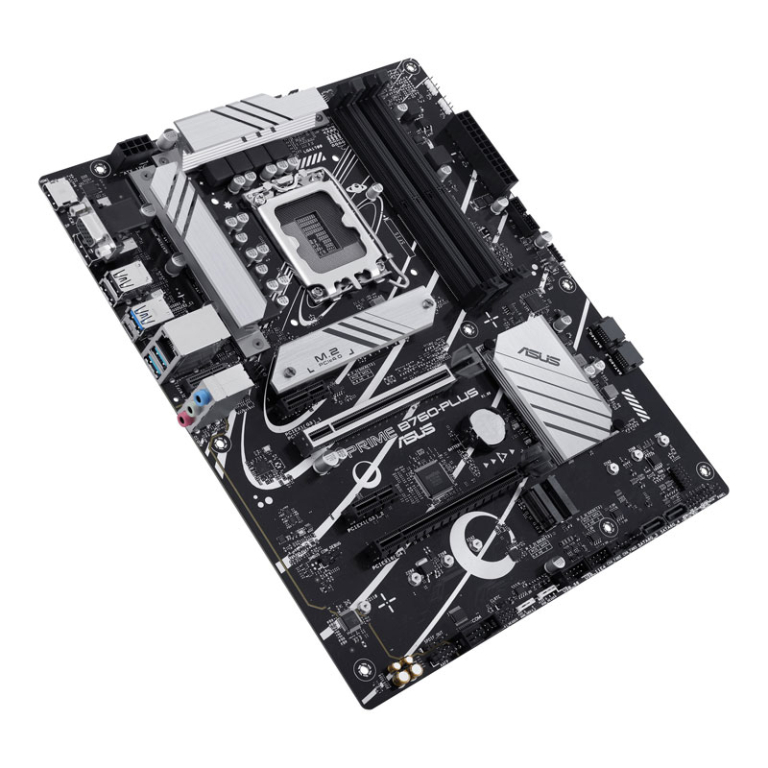

| Proizvajalčeva koda | 90MB1EF0-M1EAY0 |
| EAN koda | 4711387102985 |
| Proizvajalec | ASUS |
| Podnožje: | LGA1700 |
| Vezni nabor: | Intel B760 |
| format_filter_matične | ATX |
| Pomnilnik: | 4x DIMM DDR5, do 192 GB do 7200 (OC) |
| Razširitvena mesta: | Intel Core Processors (14th & 13th & 12th Gen)
1x PCIe 5.0 x16 slot
Intel B760 Chipset
1x PCIe 4.0 x16 slot (supports x4 mode)
2x PCIe 3.0 x1 slots |
| SATA/IDE | 4x SATA 6Gb/s |
| Shranjevanje: | Skupno podpira 3x M.2 slot in 4x SATA 6Gb/s ports*
Intel® Core™ Processors (14th & 13th & 12th Gen)
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
Intel® B760 Chipset
M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x2 mode)
4x SATA 6Gb/s ports
* Intel® Rapid Storage Technology podpira SATA RAID 0/1/5/10.
|
| zvočna_kartica | Realtek 7.1 Surround Sound High Definition Audio CODEC |
| stevilo_usb_priključkov | Zadaj USB (skupno 6)
1x USB 3.2 Gen 2x2 port (1 x USB Type-C®)
2x USB 3.2 Gen 2 ports (2 x Type-A)
1x USB 3.2 Gen 1 port (1 x Type-A)
2x USB 2.0 ports (2 x Type-A)
Spredaj USB (skupno 7)
1x USB 3.2 Gen 1 connector (supports USB Type-C®)
1x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports
2x USB 2.0 headers support 4 additional USB 2.0 ports
|
| Mrežna kartica | 2.5Gb Ethernet Realtek |

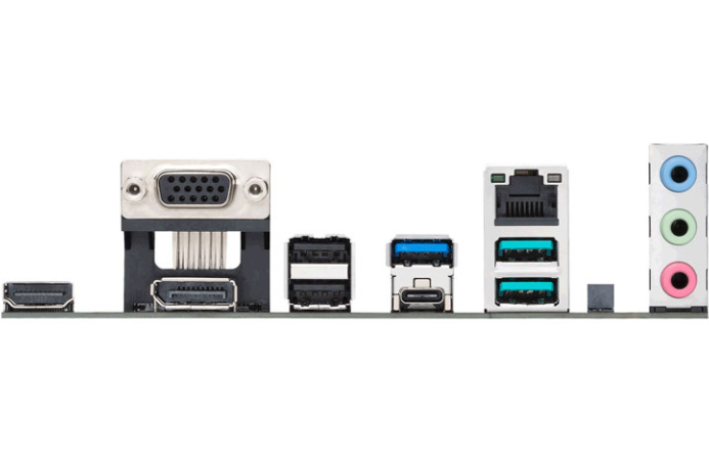

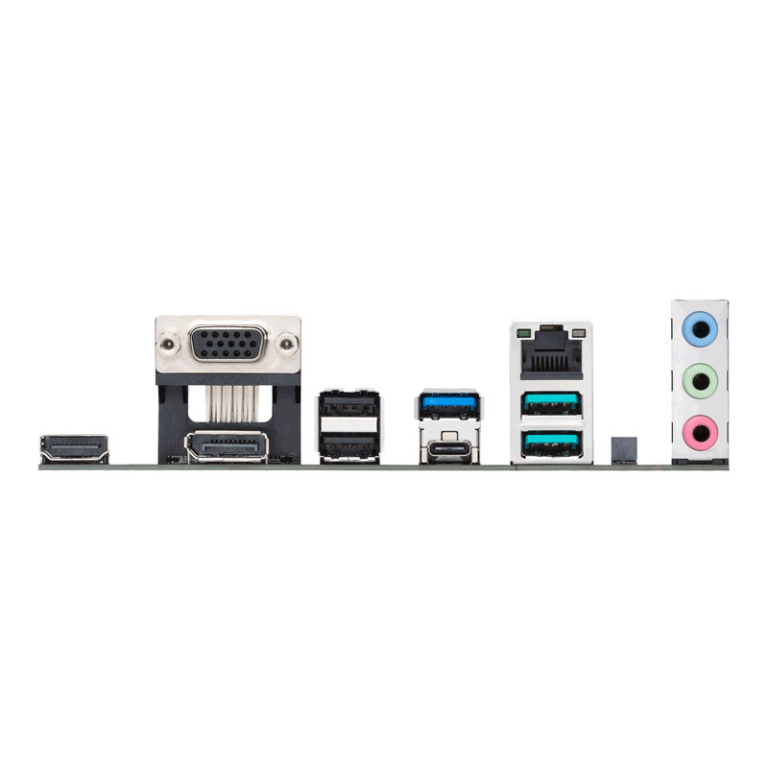

| Zunanji konektorji: | 1x USB 3.2 Gen 2x2 port (1x USB Type-C®)
2x USB 3.2 Gen 2 ports (2x Type-A)
1x USB 3.2 Gen 1 port (1x Type-A)
2x USB 2.0 ports (2x Type-A)
1x DisplayPort
1x VGA port
1x HDMI™ port
1x Vertical M.2 slot (Key E)
1x Realtek 2.5Gb Ethernet port
3x Audio jacks |
| Notranji konektorji: | Ventilator in hlajenje
1x 4-pin CPU Fan header
1x 4-pin AIO Pump header
3x 4-pin Chassis Fan headers
Napajanje
1x 24-pin Main Power connector
1x 8-pin +12V Power connector
Shranjevanje
3x M.2 slots (Key M)
4x SATA 6Gb/s ports
USB
1x USB 3.2 Gen 1 connector (supports USB Type-C® )
1x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports
2x USB 2.0 headers support 4 additional USB 2.0 ports
Drugo
3x Addressable Gen 2 headers
1x Aura RGB header
1x Clear CMOS header
1x COM Port header
1x Front Panel Audio header (AAFP)
1x S/PDIF Out header
1x SPI TPM header (14-1pin)
1x 20-3 pin System Panel header with Chassis intrude function
1x Thunderbolt™ (USB4®) header
|
| Dodatno: | 128 Mb Flash ROM, UEFI AMI BIOS |
| Garancija | 36 mesecev |
