| Proizvajalčeva koda | 90MB1BP0-M0EAY0 |
| EAN koda | 4711081917762 |

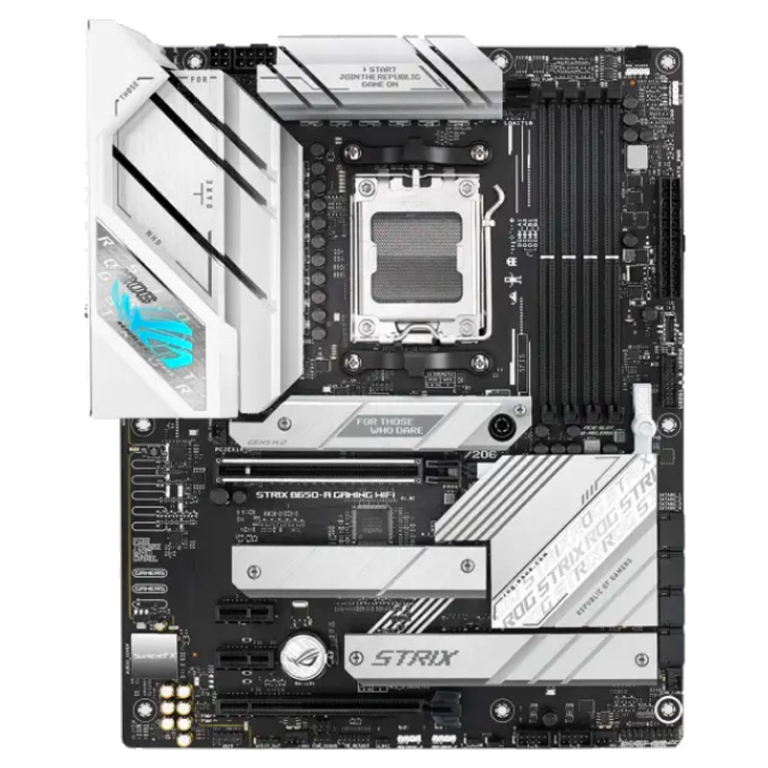

| Proizvajalec | ASUS |
| Podnožje | AM5 |
| Vezni nabor | AMD B650 |
| Format matične plošče | ATX |
| Pomnilnik | 4x DIMM, Max. 192GB, DDR5 7600+(OC) |
| Razširitvena mesta | AMD Ryzen™ 7000 Series Desktop Processors
1x PCIe 4.0 x16 slot
AMD B650 Chipset
1x PCIe 4.0 x16 slot (podpira x4 mode)
2x PCIe 4.0/3.0 x1 slot |
| SATA/IDE | 4x SATA 6 Gb/s |
| Shranjevanje | 3x M.2 slots in 4x SATA 6Gb/s ports
AMD Ryzen 7000 Series Desktop procesorji
M.2_1 slot (Key M), tip 2242/2260/2280 (podpira PCIe 5.0 x4)
M.2_2 slot (Key M), tip 2242/2260/2280 (podpira PCIe 4.0 x4)
AMD B650 Chipset
M.2_3 slot (Key M), tip 2242/2260/2280/22110 (podpira PCIe 4.0 x4 mode)
4x SATA 6Gb/s port |
| Zvočna kartica | ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080 |
| Število USB priključkov | Zadaj USB (skupaj 9)
1x USB 3.2 Gen 2x2 port (1x USB Type-C®)
4x USB 3.2 Gen 2 ports (3x Type-A + 1x USB Type-C®)
4x USB 2.0 ports (4x Type-A)
Spredaj USB (skupaj 7)
1x USB 3.2 Gen 2 (podpira USB Type-C®)
1x USB 3.2 Gen 1 header podpira dodatna 2 USB 3.2 Gen 1 port
2x USB 2.0 headers podpira dodatne 4 USB 2.0 ports |
| Mrežna kartica | 1x Intel® 2.5Gb Ethernet (ASUS LANGuard) |

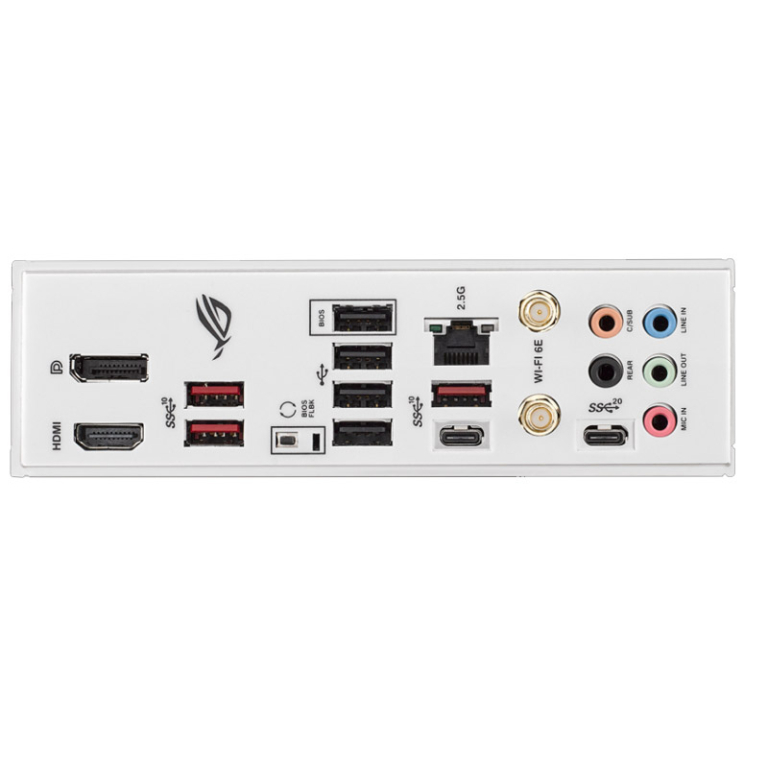

| Zunanji konektorji | 1x USB 3.2 Gen 2x2 port (1 x USB Type-C®)
4x USB 3.2 Gen 2 ports (3 x Type-A + 1 x USB Type-C®)
4x USB 2.0 ports (4 x Type-A)
1x DisplayPort
1x HDMI® port
1x Wi-Fi Module
1x Intel® 2.5Gb Ethernet port
5x Audio jacks
1x BIOS FlashBack™ button |
| Notranji konektorji | Ventilator in Hlajenje
1x 4-pin CPU Fan header
1x 4-pin CPU OPT Fan header
1x 4-pin AIO Pump header
4x 4-pin Chassis Fan headers
Napajanje
1x 24-pin Main Power connector
1x 8-pin +12V Power connector
1x 4-pin +12V Power connector
Shranjevanje
3x M.2 slots (Key M)
4x SATA 6Gb/s ports
USB
1x USB 3.2 Gen 2 connector (podpira USB Type-C®)
1x USB 3.2 Gen 1 header podpira dodatna 2 USB 3.2 Gen 1 ports
2x USB 2.0 headers podpira dodatne 4 USB 2.0 ports
Drugo
3x Addressable Gen 2 headers
1x AURA RGB header
1x Clear CMOS header
1x CPU Over Voltage jumper
1x Front Panel Audio header (AAFP)
1x S/PDIF Out header
1x 20-3 pin System Panel header with Chassis intrude function
1x Thermal Sensor header
1x Thunderbolt™header
1x COM_DEBUGheader |
| Dodatno | Wi-Fi 6E
2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax)
Podpira 2.4/5GHz frekvenco
Bluetooth v5.2
*Wi-Fi 6E 6GHz (predpisi se lahko med državami razlikujejo, funkcija pa bo na voljo v sistemu Windows 11 ali novejšem.) |
| Garancija | 36 mesecev |
