| Proizvajalčeva koda | 90MB1I40-M0EAY0 |
| EAN koda | 4711387755921 |
| Proizvajalec | ASUS |
| Podnožje: | LGA1851 |
| Vezni nabor: | Intel Z890 |
| format_filter_matične | ATX |
| Pomnilnik: | 4x DIMM DDR5, do 192 GB do 8400+MT/s (OC), podpora za Clocked Unbuffered DIMM (CUDIMM) |
| Razširitvena mesta: | Intel Core Ultra Procesorji(Series 2)
1x PCIe 5.0 x16 slot (podpira x16 or x8/x4/x4 modes)
Intel Z890 Chipset
1x PCIe 4.0 x16 slot (podpira x4 mode) |
| SATA/IDE | 4x SATA 6Gb/s |
| Shranjevanje: | Podpira 5x M.2 slot in 4x SATA 6Gb/s port
Intel Core Ultra Procesorji (Series 2)
M.2_1 slot (Key M), tip 2242/2260/2280/22110 (podpira PCIe 5.0 x4 mode)
M.2_2 slot (Key M), tip 2280 (podpira PCIe 4.0 x4 mode)
Intel Z890 Chipset
M.2_3 slot (Key M), tip 2280 (podpira PCIe 4.0 x4 mode)
M.2_4 slot (Key M), tip 2280/22110 (podpira PCIe 4.0 x4 mode)
M.2_5 slot (Key M), tip 2242/2260/2280 (podpira PCIe 4.0 x4 & SATA modes)
4x SATA 6Gb/s port |
| zvočna_kartica | ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080 |
| stevilo_usb_prikljuckov | Zadaj USB (skupno 14)
2x Thunderbolt 4 (2x USB Type-C)
6x USB 10Gbps ports (4x Type-A + 1x USB Type-C + 1x USB Type-C z do 30W PD Fast-charge)
4x USB 5Gbps port (4x Type-A)
2x USB 2.0 port
Spredaj USB (skupno 9 port)
1x USB 20Gbps (1x USB Type-C)
2x USB 5Gbps headers podpira 4 dodatne USB 5Gbps port
2x USB 2.0 headers podpira 4 dodatne USB 2.0 port
|
| Mrežna kartica | 1x Intel 2.5 Gb Ethernet port |

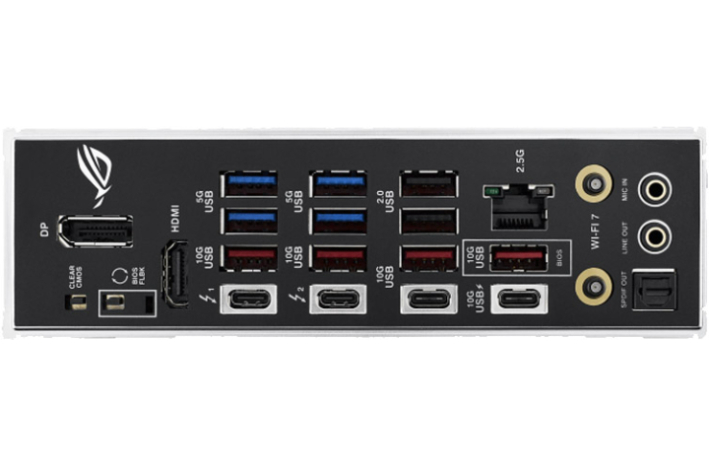

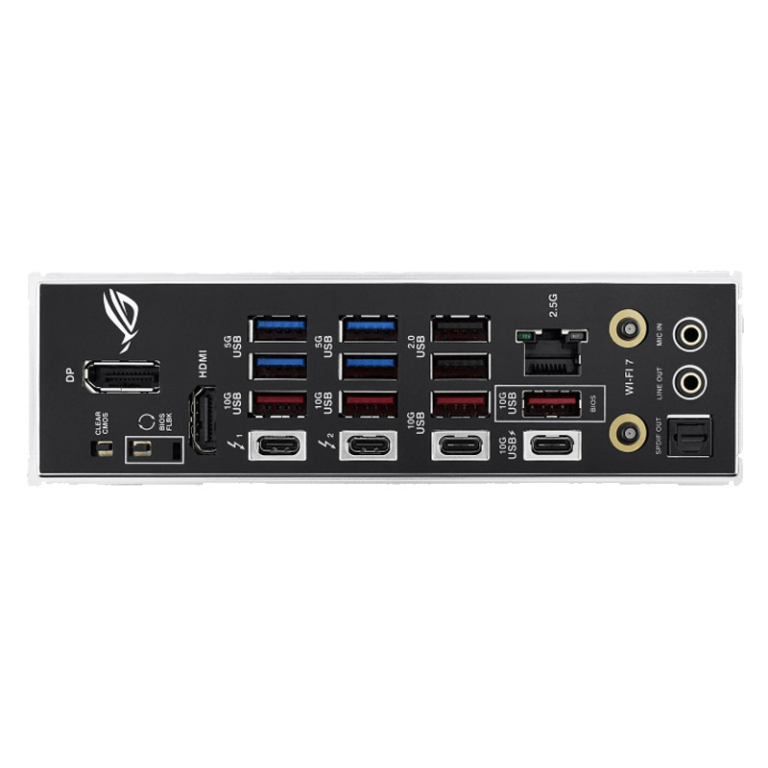

| Zunanji konektorji: | 2x Thunderbolt 4 (2x USB Type-C)
6x USB 10Gbps port (4x Type-A + 1x USB Type-C + 1x USB Type-C z do 30W PD Fast-charge)
4x USB 5Gbps port (4x Type-A)
2x USB 2.0 port (2x Type-A)
1x DisplayPort
1x HDMI port
1x Wi-Fi module
1x Intel 2.5Gb Ethernet port
2x Gold-plated audio jack
1x Optical S/PDIF izhod
1x BIOS FlashBack
1x Clear CMOS |
| Notranji konektorji: | Ventilator in hlajenje
1x 4-pin CPU Fan
1x 4-pin CPU OPT Fan
1x 4-pin AIO Pump
5x 4-pin Chassis Fan
Napajanje
1x 24-pin Main Power connector
2x 8-pin +12V CPU Power connectors
Shranjevanje
5x M.2 slots (Key M)
4x SATA 6Gb/s ports
USB
1x USB 20Gbps (podpira USB Type-C)
2x USB 5Gbps headers podpira dodatne 4 USB 5Gbps port
2x USB 2.0 headers podpira 4 dodatne USB 2.0 port
Drugo
3x Addressable Gen2 headers
1x Chassis Intrusion header
1x CPU Over voltage jumper
1x Front Panel Audio header (F_AUDIO)
1x Start button
1x 10-1 pin Front System Panel header
1x Thermal Sensor header
1x Thunderbolt (USB4)
|
| Dodatno: | Wi-Fi 7
2x2 Wi-Fi 7 (802.11be)
Podpira 2.4/5/6GHz frekvenca
Podpira Wi-Fi 7 320MHz bandwidth, do 5.8Gbps prenosa.
Bluetooth v5.4* *Verzija BT se lahko razlikuje |
| Garancija | 36 mesecev |
