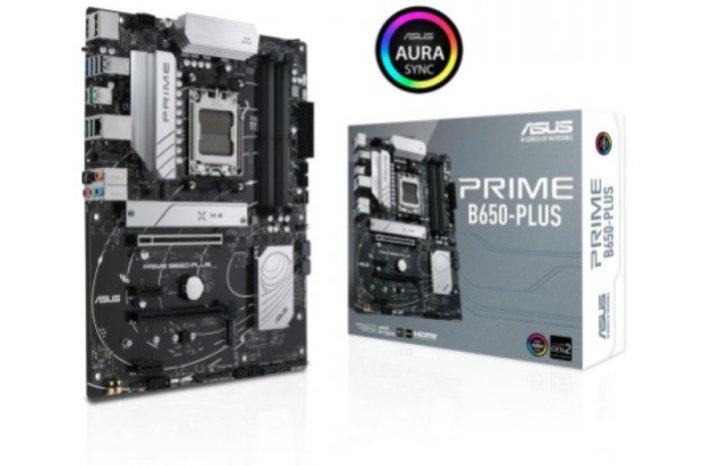

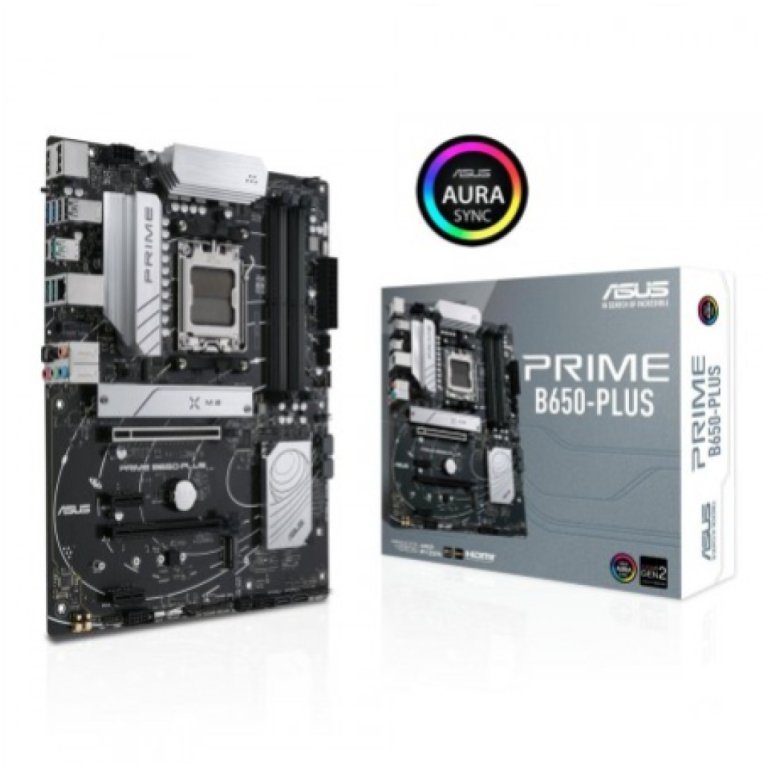

Osnovna plošča AM5 ASUS PRIME B650-PLUS DDR5 HDMI DisplayPort

Opis

Ključne značilnosti:

- Podnožje: AMD AM5

- Za procesorje: AMD RYZEN 7000 Series

Prednosti izdelka:

- Format: ATX format 30.5 cm x 24.4 cm

- Vezni čip: AMD B650

- Pomnilnik: 4 x DDR5 DIMM ECC in Non-ECC, Un-buffered Memory 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MHz (odvisno od procesorja) do skupno 128GB kapacitete, dual channel in EXtended Profiles for Overclocking, OptiMem II podpora

Tehnične specifikacije:

• 1 x PCI Express 3.0/4.0 x16
• 1 x PCI Express 3.0/4.0 x4
• 2 x PCI Express 3.0/4.0 x1
• Realtek 2.5GbE LAN chip (10/100/1000Mbit/2.5Gbit)
• Realtek Audio codec High Definition Audio (2/4/5.1/7.1-channel)
• 1 x 4-pin CPU Fan header
• 1 x 4-pin CPU OPT Fan header
• 1 x 4-pin AIO Pump header
• 3 x 4-pin Chassis Fan headers
• 1 x 24-pin Main Power connector
• 1 x 8-pin +12V Power connector
• 2 x M.2 slots (Key M)
• 4 x SATA 6Gb/s ports
• 1 x USB 3.2 Gen 1 connector (supports USB Type-C)
• 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports
• 2 x USB 2.0 headers support 4 additional USB 2.0 ports
• 3 x Addressable Gen 2 headers
• 1 x Aura RGB header
• 1 x Clear CMOS header
• 1 x COM Port header
• 1 x Front Panel Audio header (AAFP)
• 1 x SPI TPM header (14-1pin)
• 1 x 20-3 pin System Panel header with Chassis intrude function
• 1 x Thunderbolt (USB4) header
• 4 x USB 3.2 Gen 2 ports (3 x Type-A + 1 x USB Type-C)
• 2 x USB 3.2 Gen 1 ports (2 x Type-A)
• 2 x USB 2.0 ports (2 x Type-A)
• 1 x DisplayPort
• 1 x HDMI port
• 1 x Vertical M.2 slot (Key E)
• 1 x Realtek 2.5Gb Ethernet port
• 5 x Audio jacks
• 1 x Optical S/PDIF out port
• 1 x BIOS FlashBack button
• ASUS 5X PROTECTION III
• DIGI+ VRM
• LANGuard
• Overvoltage Protection
• Safeslot Core+
• Stainless-Steel Back I/O
• ASUS Q-Design
• Q-DIMM
• Q-LED Core
• Q-Slot

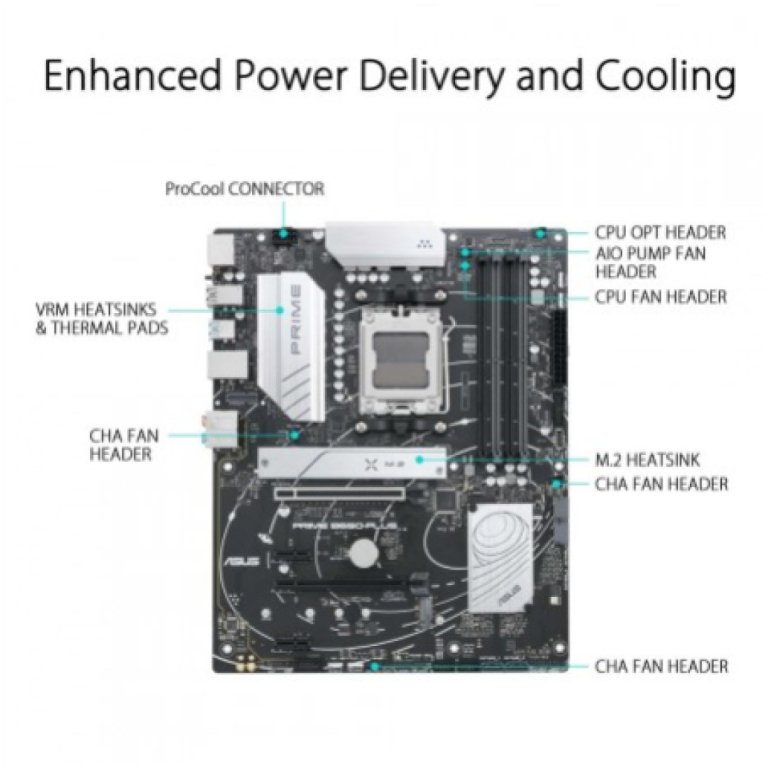

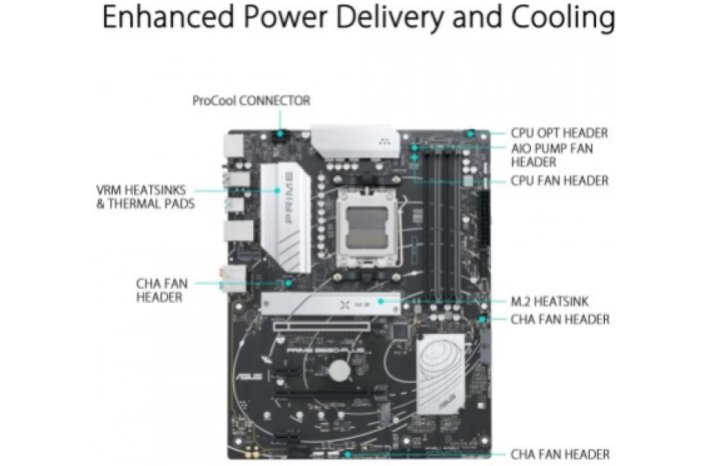

• ASUS Thermal Solution
• Flexible M.2 heatsink
• VRM heatsink design
• ASUS EZ DIY
• BIOS FlashBack button
• BIOS FlashBack LED
• ProCool
• Aura Sync
• Aura RGB header
• Addressable Gen 2 headers
• Software Features
• ASUS Exclusive Software
• Armoury Crate
• Aura Creator
• Aura Sync
• Fan Xpert 2+
• Power Saving
• AI Suite 3
• TurboV EVO
• DIGI+ VRM
• PC Cleaner
• ASUS CPU-Z
• Norton Anti-virus software (Free Trial version)
• WinRAR
• UEFI BIOS
• ASUS EZ DIY
• ASUS CrashFree BIOS 3
• ASUS EZ Flash 3
• ASUS UEFI BIOS EZ Mode
• BIOS
• 256 Mb Flash ROM, UEFI AMI BIOS
• Manageability
• WOL by PME, PXE
